Removing both rear side trim strips
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the rear trim strip on the side
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

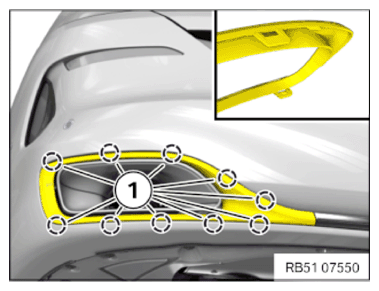

- Release latch mechanisms (1) with a suitable tool and remove the rear side trim strip.
