Removing both LEDs from the luggage compartment

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the LED in the luggage compartment

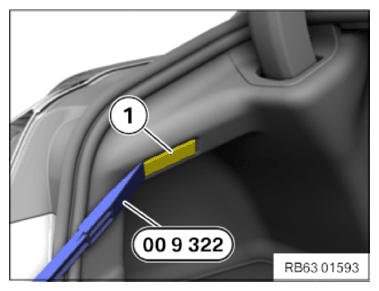

Unclip LED (1) in the cargo area from the luggage compartment wheel arch trim panel using special tool 0 490 539 (00 9 322) .

Courtesy of BMW OF NORTH AMERICA, INC.

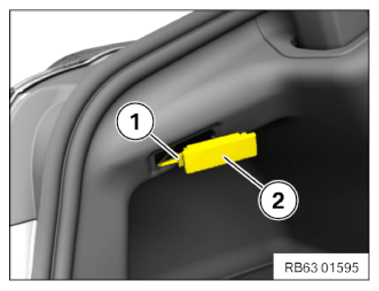

Unlock plug connection (1) and disconnect.
Remove LED (2).

Courtesy of BMW OF NORTH AMERICA, INC.
