Remove backrest covering with cushion for rear seat

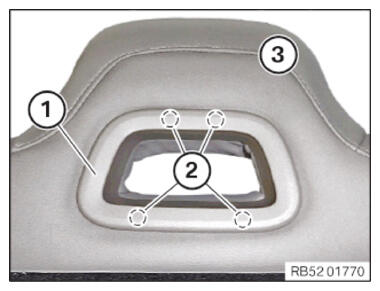

• Carefully loosen the trim (1) with the special tool 0 496 569 (00 9 325) at the marked points (2).
• Remove trim (1) from the backrest covering (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

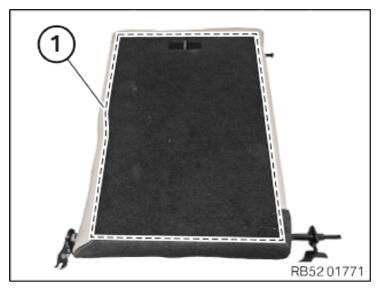

• Unclip the edge stripping of the backrest cover with the special tool 0 496 569 (00 9 325) along the broken line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

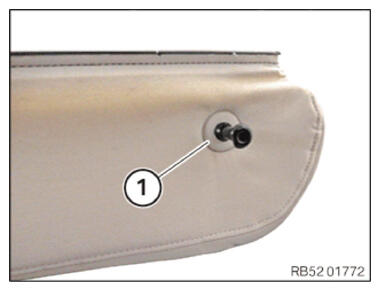

• Unclip the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

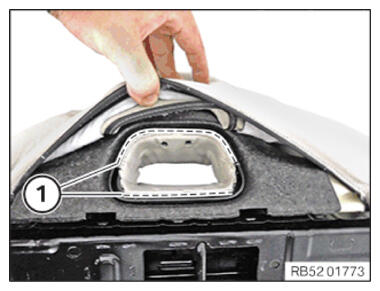

• Unclip the edge stripping of the backrest cover with the special tool 0 496 569 (00 9 325) along the broken line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

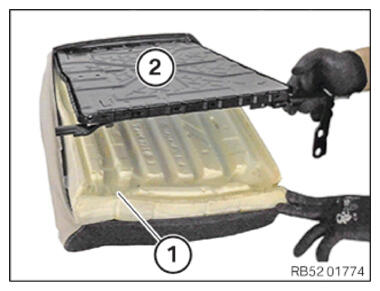

• Carefully remove the backrest covering with cushion (1) from backrest frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.
