Releasing the right and left output shafts from the rear axle differential
NOTE:
Perform the steps on the right and left side.
Detach the output shaft from the rear axle differential

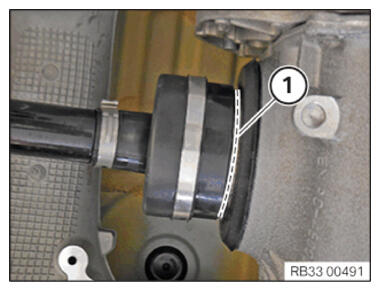

- In the following step, mount the special tool on the circumferential slot (1) of the output shaft.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

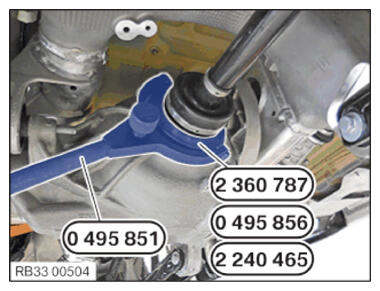

- Press out the output shaft using the special tool 0 495 851 (33 5 120)
and the suitable special tool 2 360 787 0 495 856 (33 5 124)
or 2 240 465
from the rear axle differential using a jerky motion.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
