Release the control unit holder
Release the control unit holder

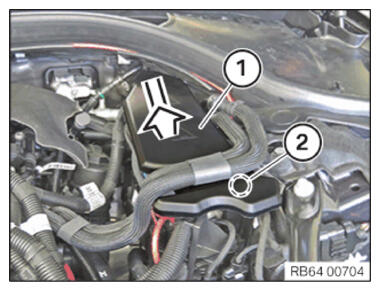

Unclip the cover (1) in this area (2) and remove in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.

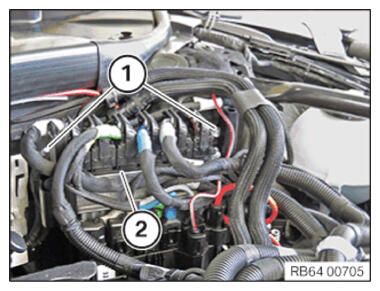

Loosen screws (1).
Remove the E-Box (2) and place to one side.
Courtesy of BMW OF NORTH AMERICA, INC.

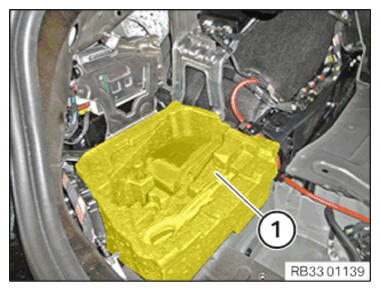

Remove shelf (1).
Courtesy of BMW OF NORTH AMERICA, INC.

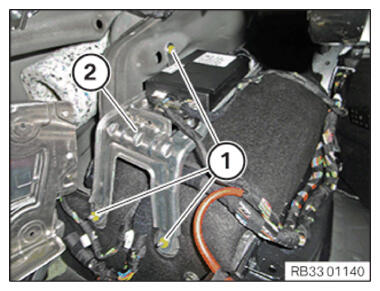

Release the nuts (1) on the control unit bracket (2).
Courtesy of BMW OF NORTH AMERICA, INC.
