Partially detach the front spring strut
Partially detach the front spring strut
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
All specifications
must
be observed and complied with.

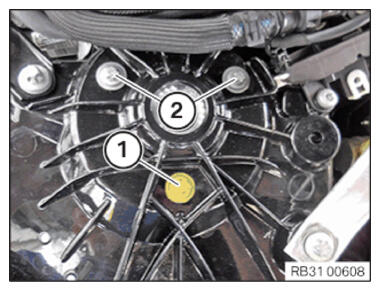

Loosen screws (2).
Screws (2)
must
be screwed in again with two turns.
Loosen screw (1).
Courtesy of BMW OF NORTH AMERICA, INC.
