Lowering rear axle differential

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Lowering the rear axle differential (without GHAS)

NOTE: RISK OF DAMAGE
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.

Secure the rear axle differential using a luggage strap.

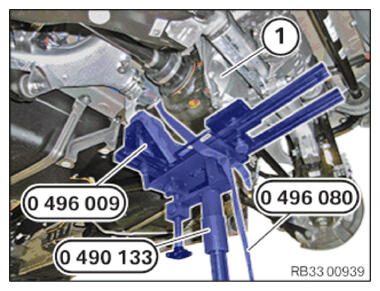

Attach the special tool 0 496 009 (33 5 200) to the special tool 0 490 133 (00 2 030).
Support the rear axle differential (1) with the special tool 0 496 009 (33 5 200).
Secure the rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 496 009 (33 5 200).

Courtesy of BMW OF NORTH AMERICA, INC.

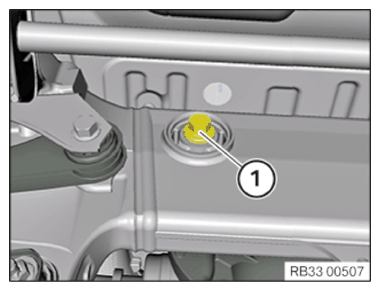

Loosen nut (1) on the rear axle support at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

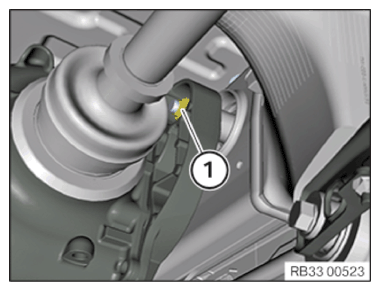

Pull the screw (1) out from the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

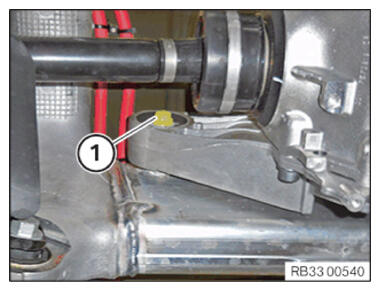

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

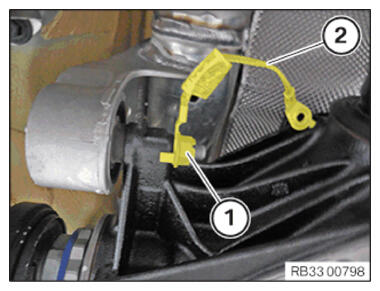

Release the nut (1).
Remove the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

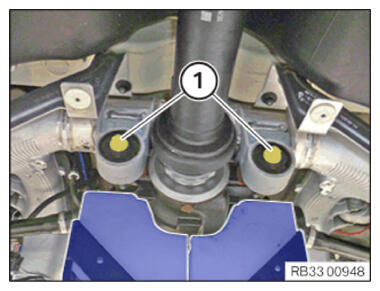

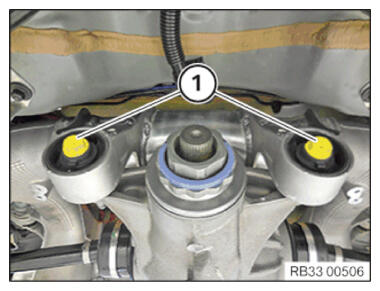

Loosen screws (1) rear axle support at front.

Courtesy of BMW OF NORTH AMERICA, INC.

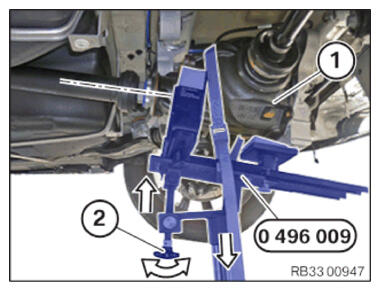

Lower the rear axle differential (1) slightly with the special tool 0 496 009 (33 5 200).
While lowering the rear axle differential (1), turn the adjustment screw (2) to raise the rear axle differential slightly at the front.

Courtesy of BMW OF NORTH AMERICA, INC.
- Lower the rear axle differential (with GHAS)
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.
- Secure the rear axle differential using a luggage strap.

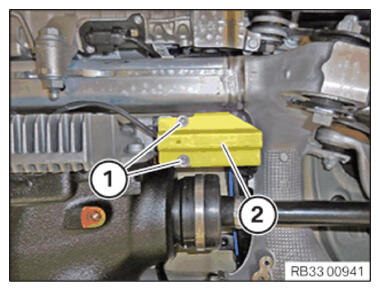

Loosen screws (1).
Remove the heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

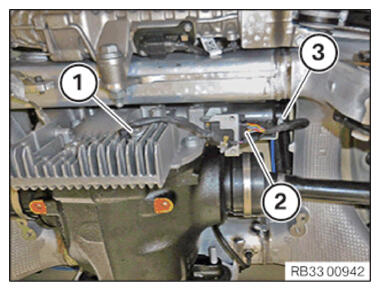

Unlock and disconnect the plug connections (1) and (2).
Release cable from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the special tool 0 496 009 (33 5 200) to the special tool 0 490 133 (00 2 030).
Support the rear axle differential (1) with the special tool 0 496 009 (33 5 200).
Secure the rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 496 009 (33 5 200).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1) on the rear axle support at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

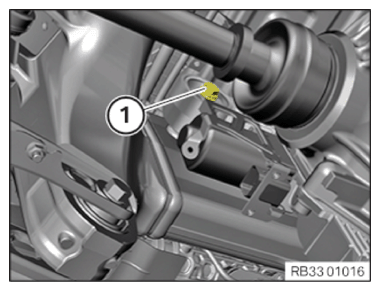

Pull the bolt (1) out of the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
Release nut (1).
Remove the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) on rear axle support at front.

Courtesy of BMW OF NORTH AMERICA, INC.
Slightly lower the rear axle differential (1) with the special tool 0 496 009 (33 5 200).
While lowering the rear axle differential (1), turn the adjustment screw (2) to raise the rear axle differential slightly at the front.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Lowering the rear axle differential (without GHAS)

NOTE: RISK OF DAMAGE
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.

Secure the rear axle differential using a luggage strap.

Attach the special tool 0 496 009 (33 5 200) to the special tool 0 490 133 (00 2 030).
Support the rear axle differential (1) with the special tool 0 496 009 (33 5 200).
Secure the rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 496 009 (33 5 200).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1) on the rear axle support at rear.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the bolt (1) out of the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
Release the nut (1).
Remove the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) rear axle support at front.

Courtesy of BMW OF NORTH AMERICA, INC.
Lower the rear axle differential (1) slightly with the special tool 0 496 009 (33 5 200).

Courtesy of BMW OF NORTH AMERICA, INC.
- Lowering the rear axle differential (with regulated rear axle differential lock (GHAS))
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.
- Secure the rear axle differential using a luggage strap.
Loosen screws (1).
Remove the heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the plug connections (1) and (2).
Release cable from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the special tool 0 496 009 (33 5 200) to the special tool 0 490 133 (00 2 030).
Support the rear axle differential (1) with the special tool 0 496 009 (33 5 200).
Secure the rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 496 009 (33 5 200).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1) on the rear axle support at rear.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the bolt (1) out of the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
Release nut (1).
Remove the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) on rear axle support at front.

Courtesy of BMW OF NORTH AMERICA, INC.
Lower the rear axle differential (1) slightly with the special tool 0 496 009 (33 5 200).

Courtesy of BMW OF NORTH AMERICA, INC.
