Installing the top air flap control

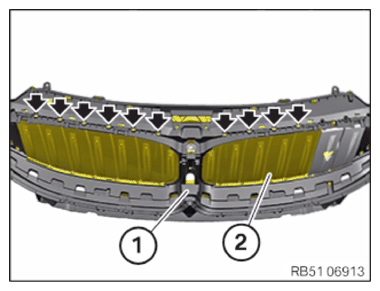

- The blades of the air flap control (2) must be closed and correctly positioned.
- Carefully thread the frame (1) on to the guide pin (arrowed) of the air flap control (2).
- Make sure the blades of the air flap control (2) are positioned correctly within the frame (1).

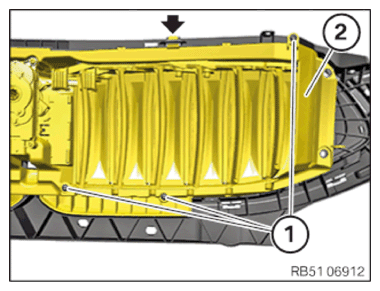

- Tighten the screws (1) on the right hand side of the air flap control (2).
TIGHTENING TORQUE SPECIFICATIONS
| Air duct frame | ||
|---|---|---|
| Screw | tightening torque | 2.6 Nm |
- Lock the lock (arrow).

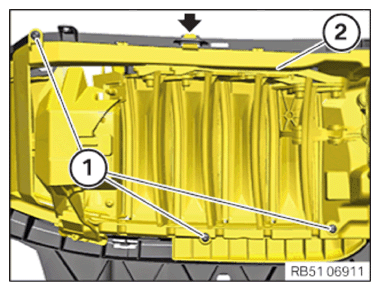

- Tighten the screws (1) on the left hand side of the air flap control (2).
TIGHTENING TORQUE SPECIFICATIONS
| Air duct frame | ||
|---|---|---|
| Screw | tightening torque | 2.6 Nm |
- Lock the lock (2).

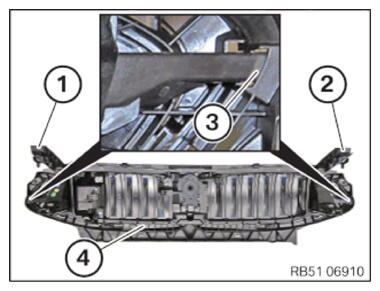

- Place the brackets (2) and (3) on the frame (4) of the air flap control.
- Thread in the brackets (1) and (2) on to the guides (3) and position them correctly.
- Carefully rotate the air flap control with the frame (2).

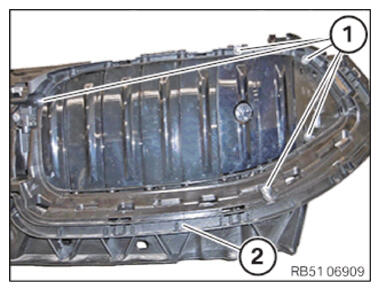

- Tighten the screws (1) on the left of the frame (2) of the air flap control.
TIGHTENING TORQUE SPECIFICATIONS
| Air duct frame | ||
|---|---|---|
| Screw | tightening torque | 2.6 Nm |

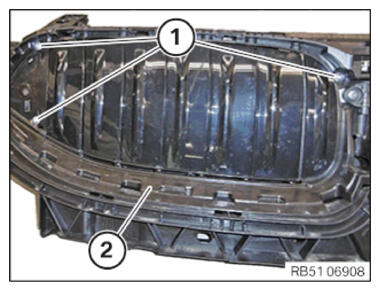

- Tighten the screws (1) on the right of the frame (2) of the air flap control.TIGHTENING TORQUE SPECIFICATIONS

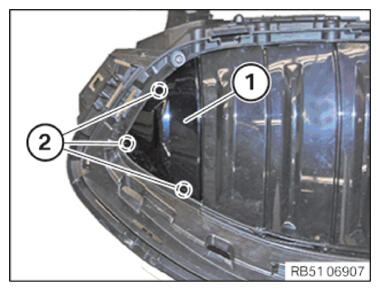

Air duct frame Screw tightening torque 2.6 Nm - Place the right-hand cover (1) correctly in position and click the detents (2) home.

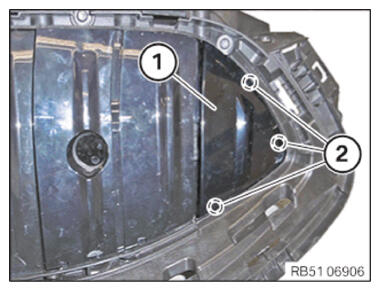

- Place the left-hand cover (1) correctly in position and click the detents (2) home.
