Installing the left and center rear seat backrest

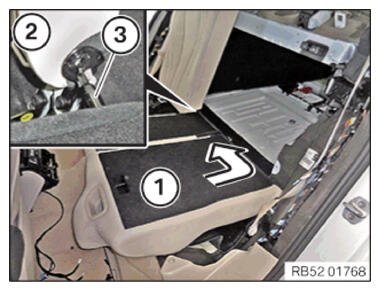

- Carefully position the rear seat backrest left and center (1) in the direction of the arrow as shown.
Simultaneously make sure that guide pin 3 is correctly positioned in the rear seat backrest (2).

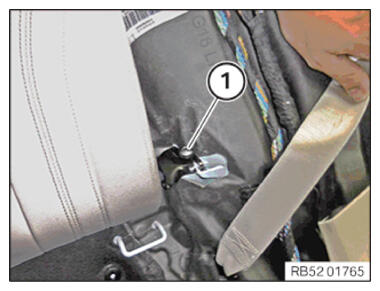

- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear seat backrest on body | ||
|---|---|---|
| screw Replace screw. |
Tightening torque | 42 Nm |

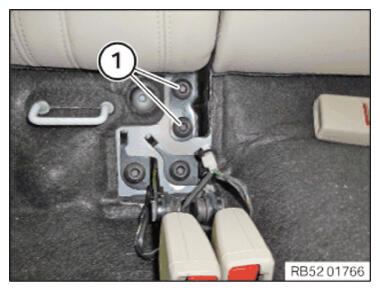

- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear seat backrest on body | ||
|---|---|---|
| screw Replace screw. |
Tightening torque | 42 Nm |
