Installing the heat shields

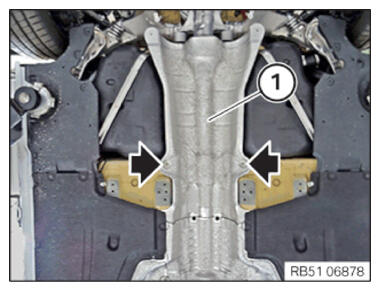

Install heat shield (1).

Tighten the nuts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

G15700661

Courtesy of BMW OF NORTH AMERICA, INC.

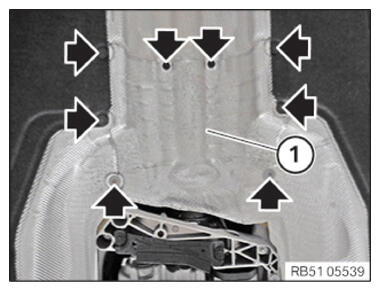

Install heat shield (1).

Tighten nuts and screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

G15700662

Courtesy of BMW OF NORTH AMERICA, INC.
