Installing backrest covering with cushion for rear seat

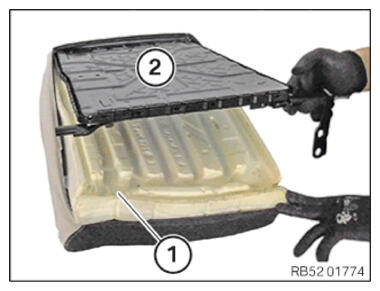

• Correctly position the backrest covering with cushion (1) on the backrest frame (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

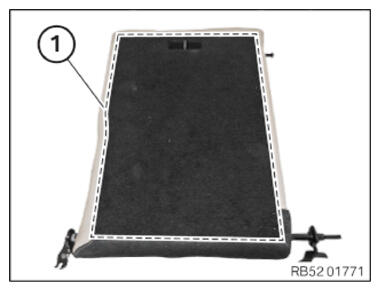

• Correctly clip in the edge stripping of the backrest covering along the dotted line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

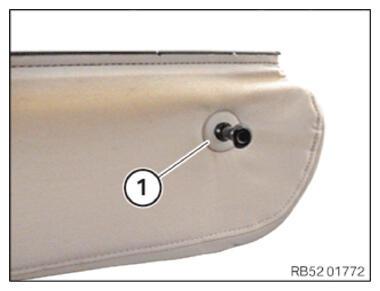

• Correctly position and clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

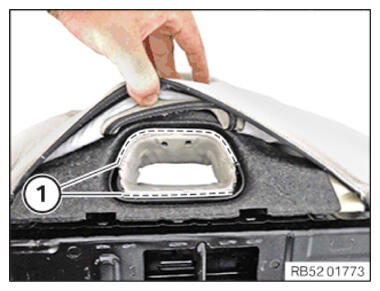

• Correctly position and clip in the edge stripping of the backrest covering along the dotted line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

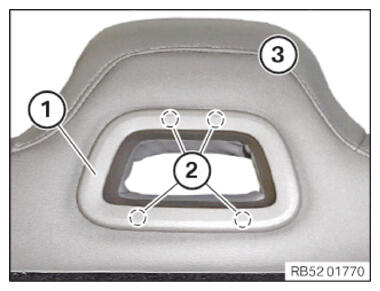

• Correctly position the cover (1) in the backrest covering (3) and clip in on the marked points (2).

Courtesy of BMW OF NORTH AMERICA, INC.
