Install the center B-pillar trim panel

Check

• Check snap-in lugs and clamps (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Snap-in lugs are damaged.

Measure

• Replace the center B-pillar trim panel (2).

Parts:  Center B-pillar trim panel

Result

» Clamps (1) are damaged.

Measure

• Replace clamps (1).

Parts:  Clamps

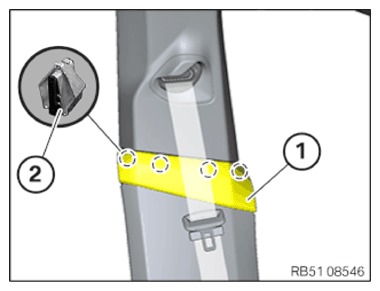

• Correctly position the center B-pillar trim panel (1) and engage it in the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
