Fasten the output shaft on the wheel bearing
NOTE:
TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.
The installation note for front gearing must be observed at all times.

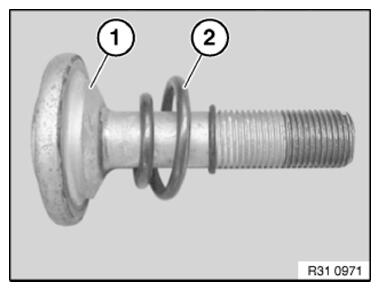

- Replace the collar screw (1) and compression spring (2).
Parts: Collar screw and compression spring
- Note installation position of compression spring (2).
- Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

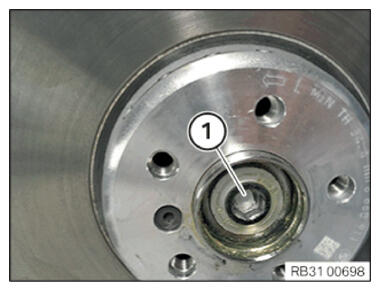

- Hand-tighten the collar screw (1) with the compression spring.
NOTE:
TECHNICAL INFORMATION
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
NOTE:
TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.
The installation note for front gearing must be observed at all times.
- Replace the collar screw (1) and compression spring (2).
Parts: Collar screw and compression spring
- Note installation position of compression spring (2).
- Keep the collar screw (1) and the front gearing of the wheel bearing and the prop shaft clean and free of grease.
- Hand-tighten the collar screw (1) with the compression spring.NOTE: TECHNICAL INFORMATION
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth). - Ensure positive locking by twisting wheel bearing (1) and output shaft (2) against each other.
- Press brake pedal.
- Tighten the collar screw.TIGHTENING TORQUE SPECIFICATIONS
Output shaft to wheel bearing M16
Replace the collar screw.Joining torque 210 Nm Angle of rotation 90°
