Connect the coolant lines for the low-temperature coolant circuit
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

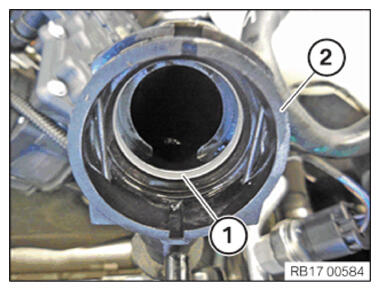

- Check the sealing rings (1) of the coolant lines (2) for damage and replace them if necessary.

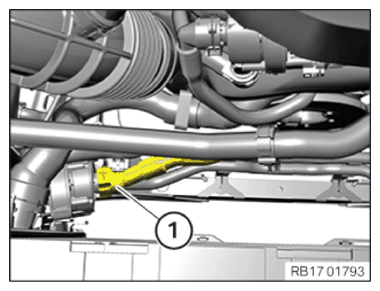

- Connect and lock the coolant line (1) on the air conditioning condenser.
The coolant line (1) must audibly engage.

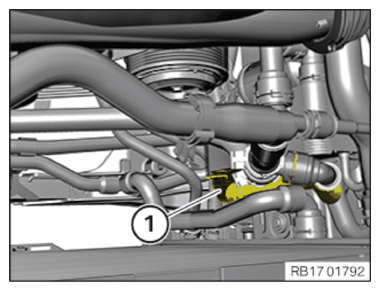

- Connect the coolant line (1) to the electric coolant pump and lock it.
The coolant line (1) must audibly engage.
