Attaching the intake pipe bracket
NOTE:

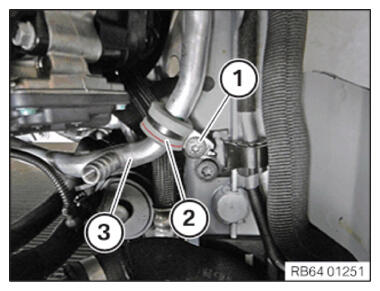

To provide a better overview: Schematic diagram with partially hidden components.
- Correctly position the bracket (2) of the intake pipe (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line holder |
| Screw |
Tightening torque |
8 Nm |
| Nut |
Tightening torque |
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
