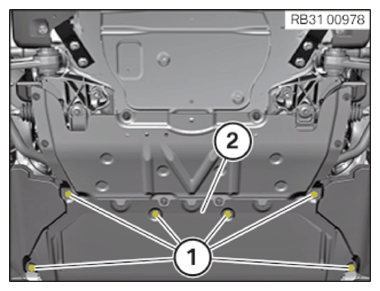

Attaching the front underbody protection

• Position the front underbody protection (2).
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
