Attach the front spring strut
Attach the front spring strut

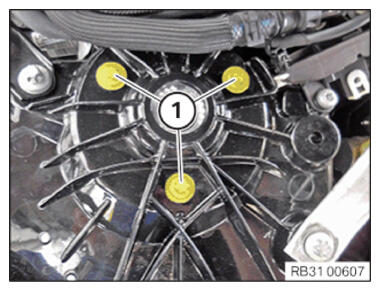

Position the spring strut on the strut-tower.
Replace screws (1).
Parts:
Screws
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Front spring strut support bearing to body
M8
Replace screws.
Tightening torque
28 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Position the spring strut on the strut-tower.
Replace screws (1).
Parts:
Screws
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Front spring strut support bearing to body
M8
Replace screws.
Tightening torque
28 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

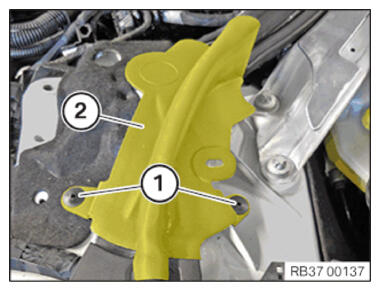

Position the cover (2).
Secure the rivet (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
