Attach the control unit holder
Attach the control unit holder

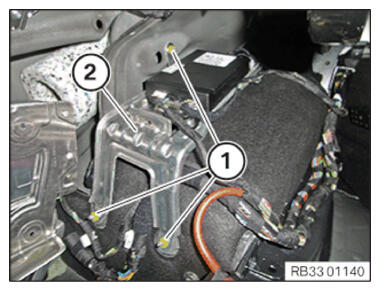

Position the control unit bracket (2).
Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
Control unit bracket to body
M6x18 screw Replace screw,
Tightening torque
11.8 Nm
Nut M6
Tightening torque
4.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

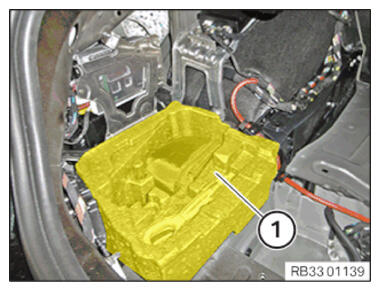

Install the storage compartment (1).
Courtesy of BMW OF NORTH AMERICA, INC.

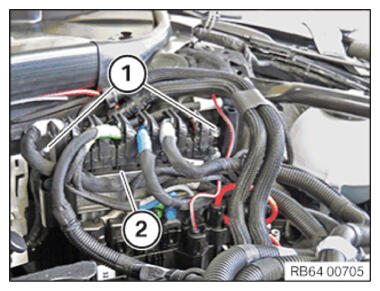

Correctly position the E-Box (2).
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Control unit bracket at the shock tower
Hexagon screw
tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

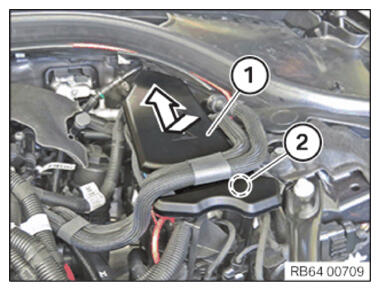

Correctly position the cover (1) and shift it in the direction of the arrow.
The cover (1) must engage correctly in this area (2).
Courtesy of BMW OF NORTH AMERICA, INC.
