Attach the anti-roll bar link to the spring strut
Attach the anti-roll bar link to the spring strut

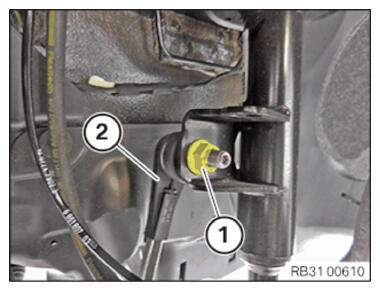

Position anti-roll bar link (2) on spring strut holder.
Replace nut (1).
Parts:
Nut
Tighten nut (1).
If necessary, counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
Anti-roll bar link on anti-roll bar/spring strut (air suspension)
M12
Replace nuts,
Tightening torque
100 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
