Removing the acoustic cover of the oil sump

Precondition

Battery earth leads are disconnected.

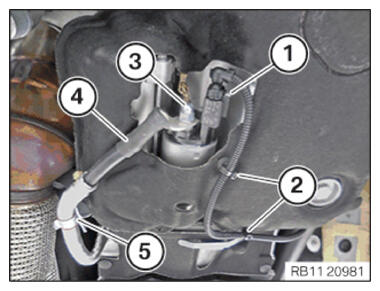

• Unlock plug connection (1) and disconnect.
• Loosen clamps (2).
• Loosen nut (3).
• Guide the positive battery cable (4) out of the clamp (5) and lay to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

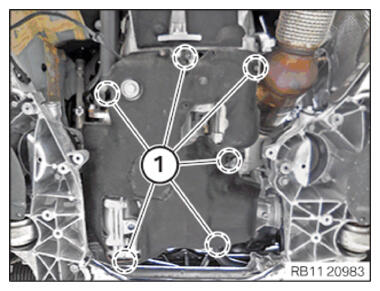

• Detach all expanding rivets (1) in the marked areas.
• Feed out the oil sump acoustic cover and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.
