Partially removing the charge air line

WARNING: Hot surfaces.
Risk of burning!

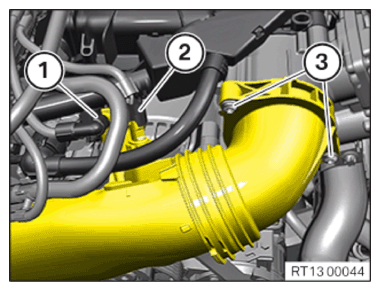

Unlock plug connection (1) and disconnect.
Unlock plug connection (2) and disconnect.
Loosen screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.

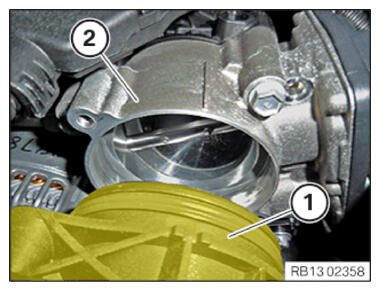

Disconnect the charge air line (1) from the throttle valve (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
