Installing the acoustic cover for the oil sump

Insert and install the acoustic cover of the oil sump.

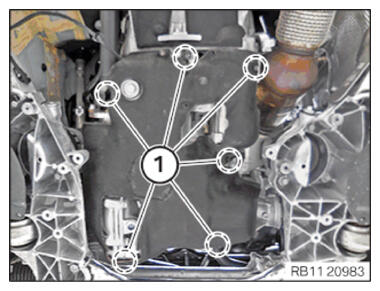

Feed in all the expanding rivets (1) in the marked area and install them.

Courtesy of BMW OF NORTH AMERICA, INC.

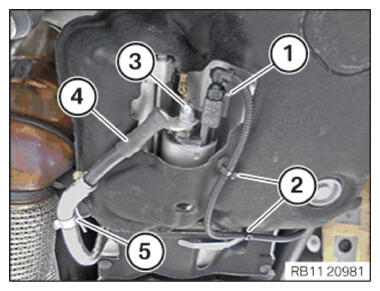

Connect connectors (1) and lock.
Make sure the connector (1) engages audibly.
Secure clamps (2).
Insert and install the positive battery cable (4).
Secure positive battery cable (4) at the clamp (5).
Tighten the nut (3) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.

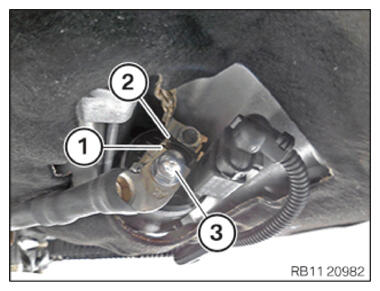

Attach the positive battery cable (1) correctly to anti-twist lock (2).

Tighten nut (3).

TIGHTENING TORQUE SPECIFICATIONS

Battery positive lead to starter
M8	Tightening torque	13.5 Nm
