Install the transfer box (ATC 13-1)
NOTE:
TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

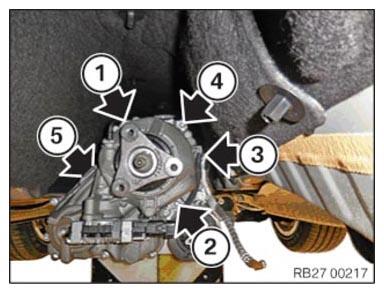

- Tighten screws in the order (1) to (5).TIGHTENING TORQUES SPECIFICATION

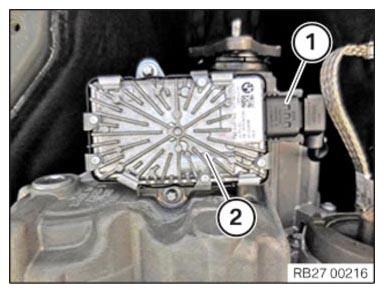

Transfer box to automatic transmission M10 tightening torque 43 Nm - Connect the connector (1) on the VTG control unit (longitudinal torque distribution) (2).

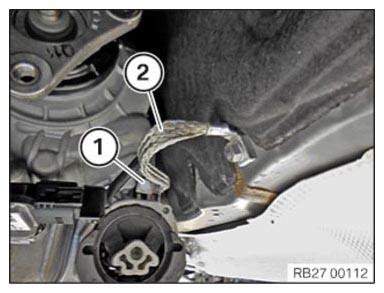

- Install the ground strap (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Ground strap on transmission/body | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
