Install the retaining plates
Install the retaining plates
Install the retaining plates.

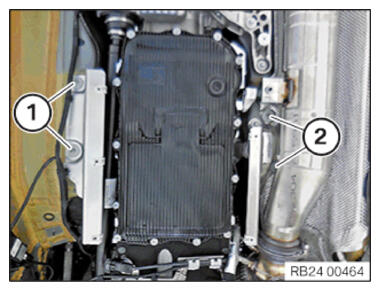

Install the nuts (1) and (2) and tighten.
TIGHTENING TORQUE SPECIFICATIONS
Retaining plates for vehicle underbody cover
Sheet metal nut/plastic nut Replace nuts.
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
