If installed: Screwing down transmission support bracket
If installed: Screwing down transmission support bracket

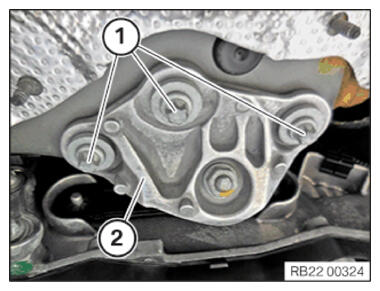

Tighten the screws (1) on the transmission bearing support (2).
TIGHTENING TORQUE SPECIFICATIONS
Transmission bearing support to body
M8
Tightening torque
19 Nm
