If installed: Install the silencer/stationary heating

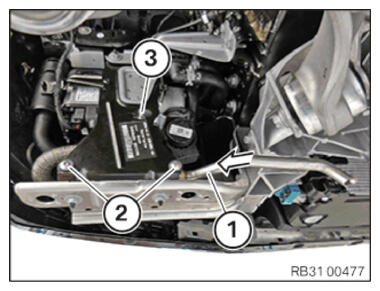

Install the silencer/stationary heating

• Insert and position the silencer (1) in the direction of the arrow.
• Secure the silencer (1) on the auxiliary heater.
• Tighten nut (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Silencer on stationary heater
  Nut	Tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Silencer on holder/holder on body
  Screw	Tightening torque	8 Nm
  Nut	Tightening torque	8 Nm

  Installing the front section of the front wheel arch cover

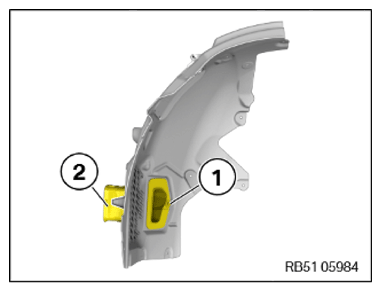

• For replacement:

  Position the brake ventilation duct (2).

  Tighten down screw (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Brake ventilation duct on front wheel arch cover front section
  Hexagon screw for thermoplastic	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

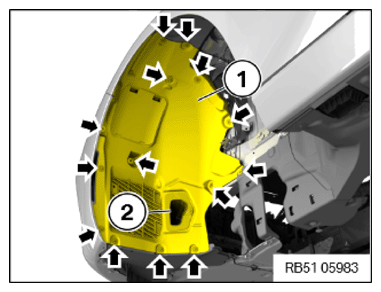

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.
• Guide in front section (1) of the wheel arch cover at the front together with the brake ventilation duct (2).
• Tighten the screws (arrows).
  TIGHTENING TORQUE SPECIFICATIONS



  Front wheel arch cover front section on body
  Hexagon screw for thermoplastic	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
