Fasten acoustic cover on the oil pan
Fasten acoustic cover on the oil pan

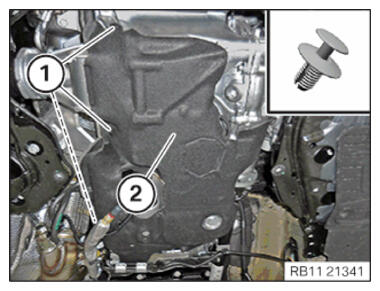

Position the acoustic cover (2) of the oil pan.

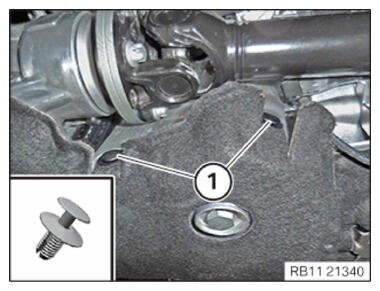

Mount clips (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Mount clips (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
