Attach the central mount of the prop shaft

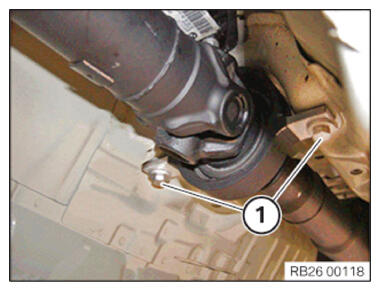

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Drive shaft center bearing on body
M8	Tightening torque	19 Nm

G15700121

Courtesy of BMW OF NORTH AMERICA, INC.
