Removing the cover of the right camber control arm
Remove the cover of the camber control arm
NOTE:

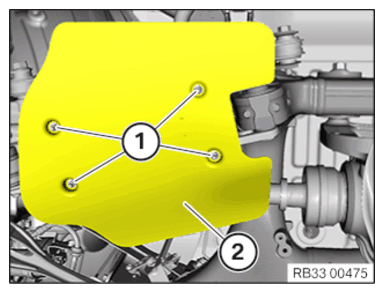

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Release the screws or nuts (1).
- Remove the cover (2) of the camber link.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
