Remove resonator
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

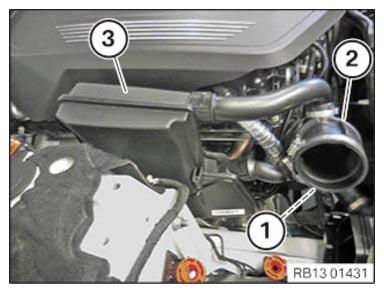

- Unfasten clamp (1).
- Remove resonator (3) from the rubber mounts.
- Guide out and resonator (3) with the upper clean air tube (2) and remove.

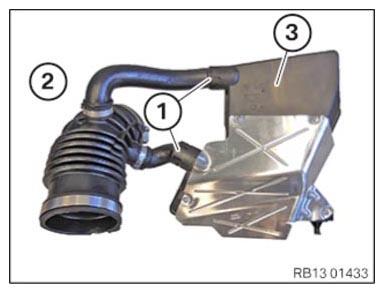

- Unlock the locks (1).
- Feed out and remove resonator (3) from top clean air pipe (2).
