Partially installing the wiring harness for the front end

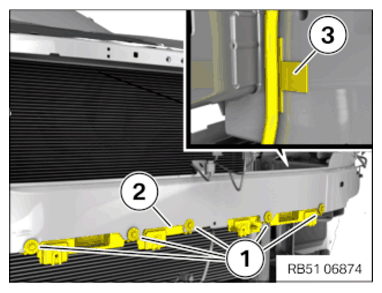

• Using all the holders, clip the front end wiring harness (3) into the support for the front bumper cover.
• Fit the cover (2).
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Cross member cover on support
Thermoplastic hexagon screw	Tightening torque	3 Nm
