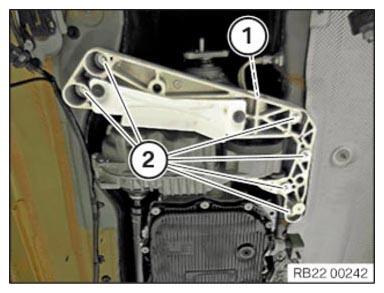

Installing transmission cross member
- Install the transmission cross member.
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Transmission cross member to body |
| M8 |
tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
TIGHTENING TORQUES SPECIFICATION
| Transmission cross member to rubber mounts |
| M12 |
tightening torque |
68 Nm |
