Installing the supports for the rear left and right window cavity cover strips
NOTE:
Perform the steps on the left and right side.
Installing the rear window channel strip support
NOTE:
Description is for left component only.
Procedure on the right side is identical.

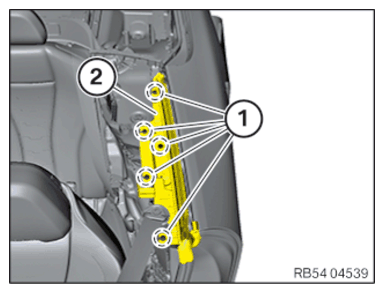

- Position the rear window channel strip support (2).
- Tighten down screws (1).
