Installing the brace for the rear bumper cover

• Position the brace for the bumper cover.

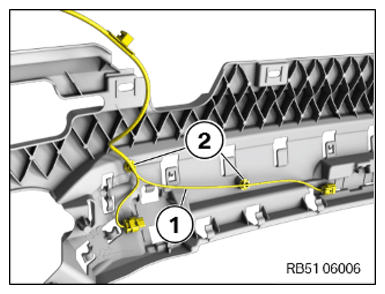

• Clip the wiring harness (1) into the brackets (2).
• Depending on equipment, connect and lock all connectors.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

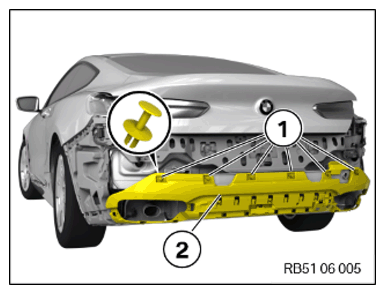

• Position brace for the rear bumper cover (2).
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

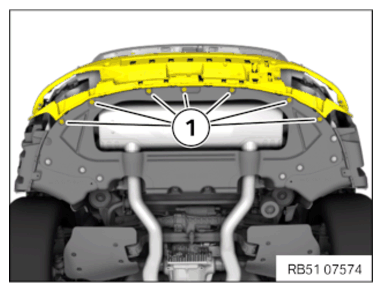

• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Diffuser to rear bumper
Plastic hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
