Installing center firewall lower part

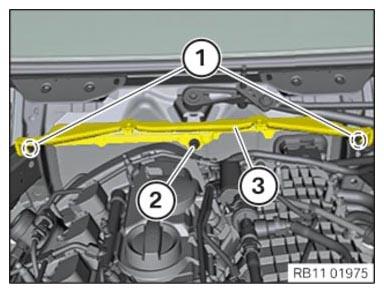

• Position the center cowl lower part (3).
• Tighten the nut (2) and the bolts (1).

TIGHTENING TORQUES SPECIFICATION

Firewall lower part on body
screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm
