Disconnecting the plug connections on the servomotor of the rear axle differential

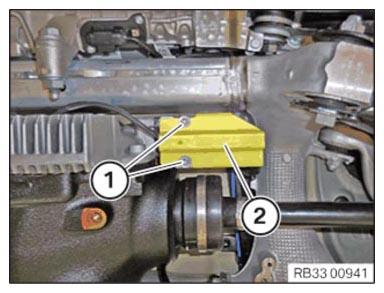

• Loosen screws (1).
• Release and remove the heat shield (2) from the cable.

  Courtesy of BMW OF NORTH AMERICA, INC.

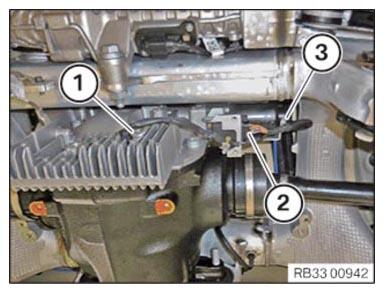

• Unlock and disconnect the plug connections (1) and (2).
• Release cable from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
