Checking/Topping up the transfer box oil (Active Torque Control 13-1)

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

• Use only the approved transmission oil.
• Check the transmission oil level after completing the repair.

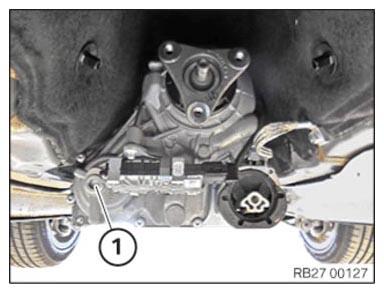

• Open the oil filler plug (1).
• Check the transmission oil level on the transfer box (VTG).

  Courtesy of BMW OF NORTH AMERICA, INC.

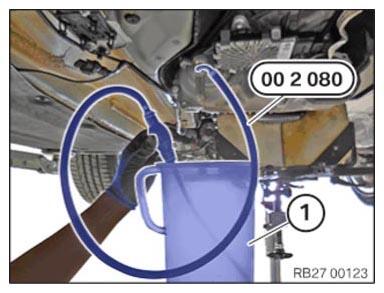

• If necessary, top up transmission oil with the special tool 0 493 337 (00 2 080)  up to the lower edge of the opening for the oil filler plug.

TECHNICAL DATA SPECIFICATION

Filling capacity of transfer box
	Transfer-box oil	min. 0.7 l

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the oil filler plug (1).

  Parts:  Oil filler plug

• Tighten the oil filler plug (1).

TIGHTENING TORQUES SPECIFICATION

Oil filler and oil drain plugs
M22	tightening torque	60 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
