Adjusting soft top

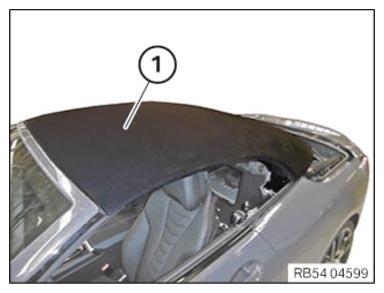

- Close the convertible top (1) completely.NOTE: Perform the steps on the left and right side.

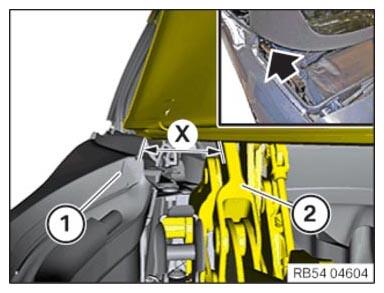

- Measure the dimension (x) between the side panel (1) and the convertible top linkage (2).
- Shift the convertible top sufficiently until the dimension (x) is the same on both sides.
- Note that the convertible top must be moved and centered equally on both sides in order to ensure stress-free installation.NOTE: Perform the steps on the left and right side.

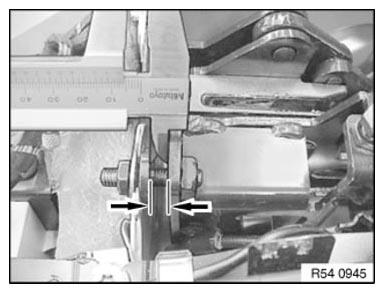

- Check the distance between the mounting plate and the convertible top main bearing again and adjust to the previously noted dimension if applicable.NOTE: Perform the steps on the left and right side.

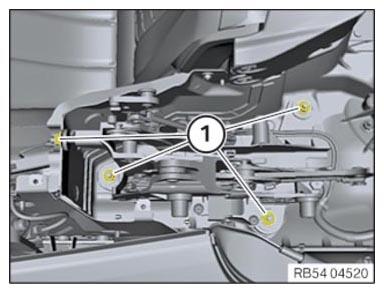

- Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Convertible top main bearing to bodyshell | ||
|---|---|---|
| Hexagon nut | tightening torque | 19 Nm |
