Installing intake silencer housing

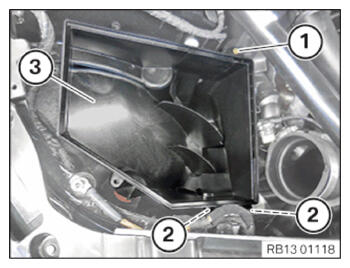

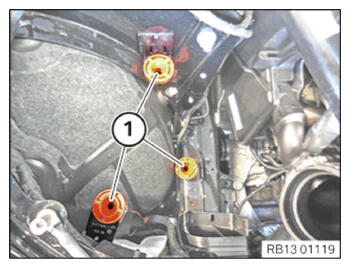

- Check rubber mount (1) for correct fit.
- Insert the intake silencer housing lower part (3) and latch into the rubber mount.
- If installed: Mount clamps (2).
The clamps (2) must engage audibly into the lower section of the intake filter housing (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Intake silencer housing to resonator | ||
|---|---|---|
| TS5x20 | Tightening torque | 2.5 Nm |

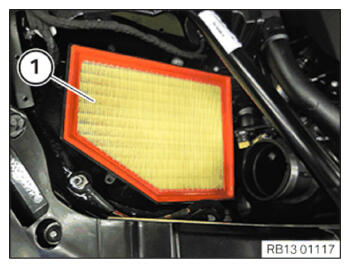

- Install the air filter insert (1).

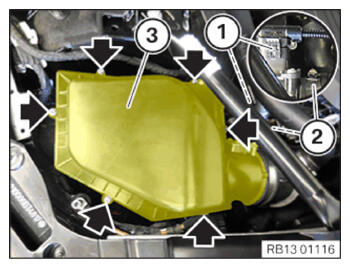

- Insert and install the upper section of the intake filter housing (3).
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Intake filter housing upper section to intake filter housing lower section | ||
|---|---|---|
| TS5x20/TS5x26 | Tightening torque | 2.5 Nm |
- Tighten clamp (2).
TIGHTENING TORQUES SPECIFICATION
| Clean air pipe to upper section of intake filter housing | ||
|---|---|---|
| cl. | Tightening torque | 3 Nm |
- Connect and lock the connector (1).
The connector (1) must engage audibly.
