Installing the controller drive for the exhaust flap

NOTE: Description is for right component only. The procedure on the left side is identical.

Insert and install the controller drive for the exhaust flap (2).
Tighten screws (arrows).
Connect and lock the connector (1).
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

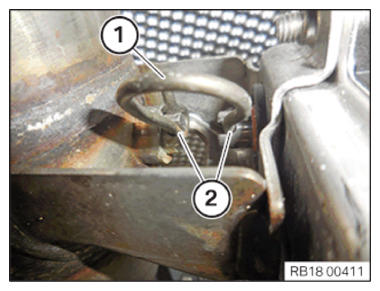

Make sure that the wire spring (1) is correctly installed in the guides.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
