Installing the left hand front pipe

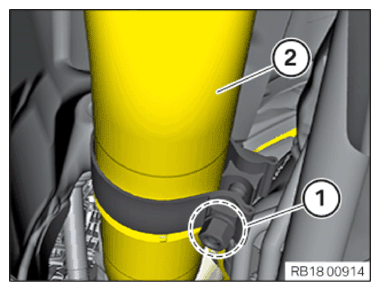

- Open the weld seam (1) with a conventional tool.
- Remove the current clamp (2).
- If necessary, replace clamp.
Parts: cl
- Position the front pipe (2).
- If necessary, replace clamp.
Parts: cl
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION
Exhaust system/front silencer to catalytic converter cl.
If necessary, replace clamp.tightening torque 55 Nm - If necessary, replace clamp (1).
Parts: cl

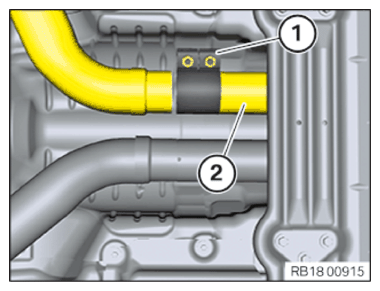

- Slide the clamp (1) on to the center silencer (2).
- Adapt the right hand front pipe to the center silencer (2).
- The opening of the circlip (2) must point outwards.

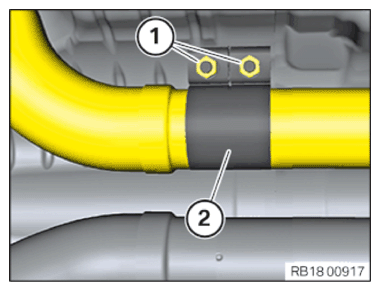

- Tighten the nuts in the area (1) of the clamp (2).TIGHTENING TORQUES SPECIFICATION
cl . Nuts Tightening torque 45 Nm
