Installing the center silencer

• Replace the center silencer (1).

  Parts:  Center silencer

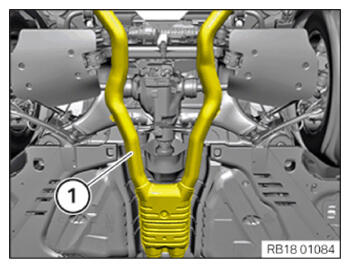

• With the help of a second person, guide in and install the center silencer (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1).

  Parts:  Screw

• Tighten the bolt (1) on the rear axle support.
  TIGHTENING TORQUES SPECIFICATION



  Exhaust system to rear axle carrier
  M8x25 Replace screw.	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (3).

  Parts:  Screw

• Tighten the screw (3) on the rear axle support.
  TIGHTENING TORQUES SPECIFICATION



  Exhaust system to rear axle carrier
  M8x25 Replace screw.	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the ground strap (2) and tighten the screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Ground strap on exhaust bracket
  M8x25	tightening torque	28 Nm

• Connect the gasoline particulate filter and front pipe with the gripper clamps (1) respectively with the center silencer.
• Center the gripper clamps (1) and tighten the nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Clamp with partial replacement of exhaust system
  Clamp	Tightening torque	45 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

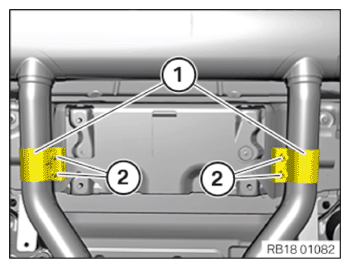

• Connect the rear silencer with the gripper clamps (1) with the center silencer.
• Center the gripper clamps (1) and tighten the nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Clamp with partial replacement of exhaust system
  Clamp	Tightening torque	45 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TORSION STRUT ON THE REAR LEFT AND RIGHT .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
