Replacing the rear silencer

Preliminary work

• Refer to ADJUSTING THE EXHAUST FLAP SERVOMOTORS INTO INSTALLATION POSITION .
• Refer to REMOVING THE REAR DIFFUSER .

Replacing the rear silencer

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock connector (1).
• Disconnect the connector (1) of the exhaust flap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock connector (1).
• Disconnect the connector (1) of the exhaust flap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Careless handling of tools and sharp-edged components  .
  Scratches, surface damage  .

  • Protect working area.
  • Handle tools and components carefully.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mask off the bordering areas of the rear silencer for the bumper cover with adhesive tape  .
  CONSUMABLE SPECIFICATION



  adh  .

  51717901759

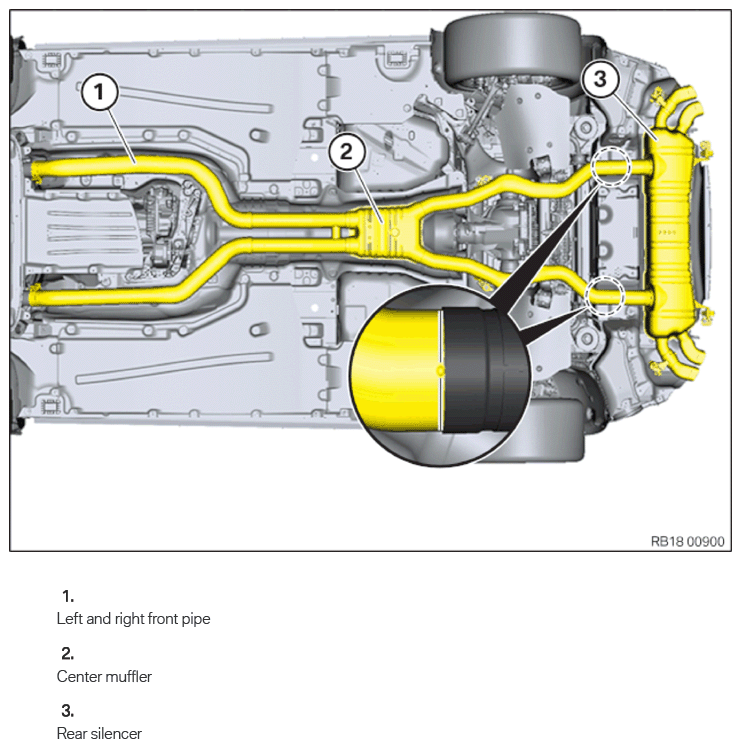

• If the separation point (1) is not marked by a grain (2) in the pipe, then determine the separation point (1) by means of the length of the pipe on the new rear silencer.
• Apply the separation point (1) to faulty rear silencer and mark it.
• With the help of a second person, secure the front silencer to prevent it from falling down.
• Cut through exhaust pipes at the marked point with a suitable tool.
• Loosen nuts (1).
• Guide out and remove rear silencer with assistance of a second person.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Remounting the rear silencer

• Loosen screws (1).
• Remove the controller drive for exhaust flap (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

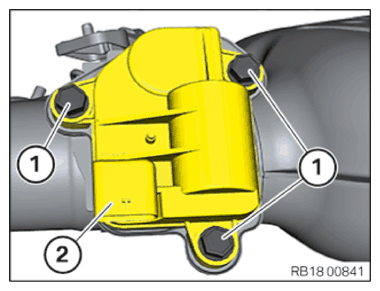

• Position the heat shield (2).
• Position the controller drive for exhaust flap (3).
• Make sure that the shaft of the controller drive for exhaust flap (3) and the shaft of the exhaust flap in the area (1) interlock correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the screws (1) on the controller drive for exhaust flap (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Actuator for the exhaust flap
  M6x16	tightening torque	8.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

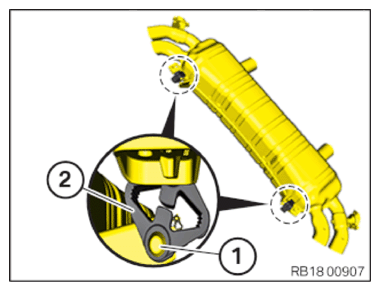

• Remove the rubber mount (2) from the bars (1) of the former rear silencer.
• Install the rubber mount (2) on the bars (1) of the rear silencer.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the rear silencer (1) with the help of a second person.
• Replace the circlips (2).

  Parts:  Clamps

• Slide circlips (2) onto the center silencer.
• Adjust the rear silencer (1) on the center silencer (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• The openings of the circlips (2) must point outwards.
• Tighten nuts in area (1) of the circlips (2).
  TIGHTENING TORQUES SPECIFICATION



  cl  .
  Nuts	Tightening torque	45 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1).
• Lock connector (1) to exhaust flap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1).
• Lock connector (1) to exhaust flap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR DIFFUSER .
