When replacing the left and right exhaust turbocharger: Remount components

When replacing the left-hand exhaust turbocharger: Remount components

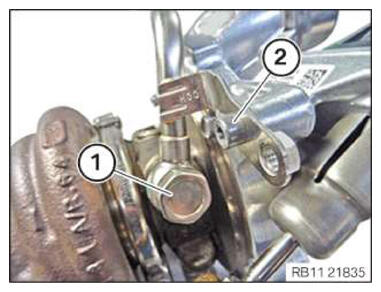

• Unscrew the banjo bolt (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

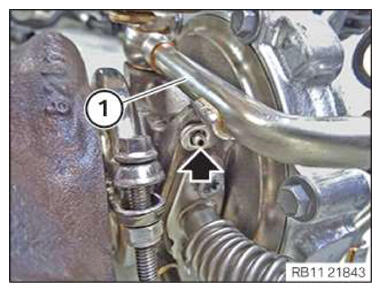

• Feed out and remove the coolant pipe (1) from the pin (arrowed).

  Courtesy of BMW OF NORTH AMERICA, INC.

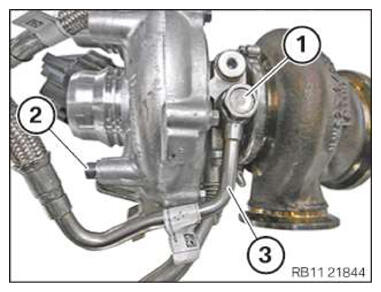

• Unscrew the banjo bolt (1).
• Loosen screw (2).
• Remove the coolant pipe (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

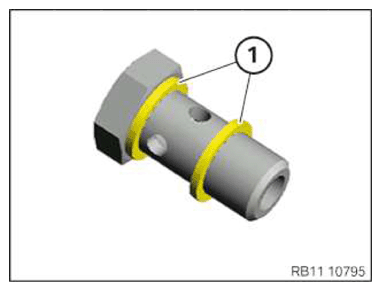

• Replace the banjo bolt.

  Parts:  Hollow bolt

• Replace seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the right exhaust turbocharger.

  Parts:  Right exhaust turbocharger

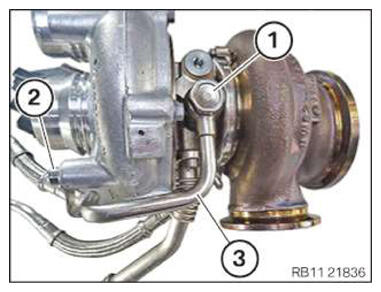

• Position the coolant pipe (3).
• Position the banjo bolt (1) and screw in several threads.
• Hand-tighten the bolt (2).

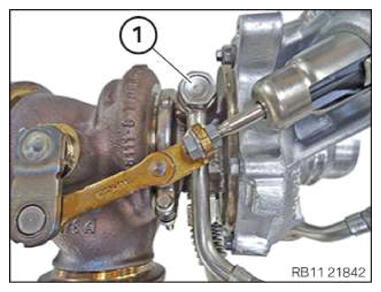

• Tighten the banjo bolt (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Banjo bolt for coolant pipe to exhaust turbocharger
  Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
  	Angle of rotation	60°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant line to exhaust turbocharger
  M6x16	tightening torque	10 Nm

• Replace the banjo bolt.

  Parts:  Hollow bolt

• Replace seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and position the coolant pipe (1) on the pin (arrowed).

  Courtesy of BMW OF NORTH AMERICA, INC.

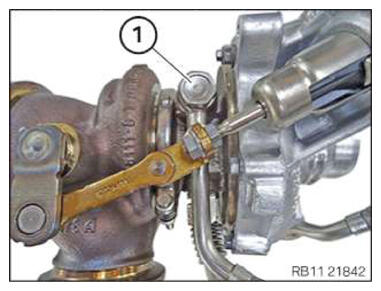

• Tighten the banjo bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing the right exhaust turbocharger: Remount components

• Unscrew the banjo bolt (1).
• Loosen screw (2).
• Remove the coolant pipe.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the banjo bolt (1).
• Loosen screw (2).
• Remove the coolant pipe (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the banjo bolt.

  Parts:  Hollow bolt

• Replace seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the right exhaust turbocharger.

  Parts:  Right exhaust turbocharger

• Position the coolant pipe (3).
• Position the banjo bolt (1) and screw in several threads.
• Hand-tighten the bolt (2).
• Tighten the banjo bolt (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Banjo bolt for coolant pipe to exhaust turbocharger
  Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
  	Angle of rotation	60°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant line to exhaust turbocharger
  M6x16	tightening torque	10 Nm

• Replace the banjo bolt.

  Parts:  Hollow bolt

• Replace seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant pipe.
• Position the banjo bolt (1) and screw in several threads.
• Hand-tighten the bolt (2).
• Tighten the banjo bolt (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Banjo bolt for coolant pipe to exhaust turbocharger
  Hollow bolt Replace the banjo bolt.	Joining torque	8 Nm
  	Angle of rotation	60°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
