Removing the blow-off valve of cylinder bank 1

Precondition

• Ignition is switched off.

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
• Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .

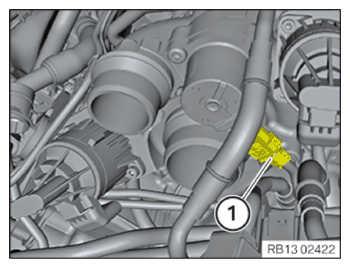

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

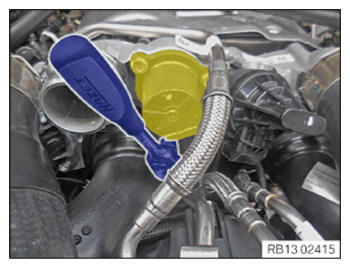

• Release the screw.

  Courtesy of BMW OF NORTH AMERICA, INC.

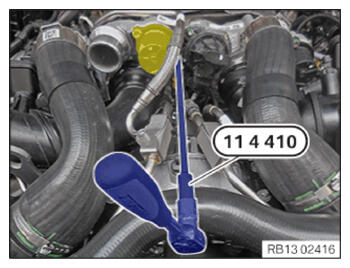

• Release screw using special tool 0 496 646 (11 4 410).

  Courtesy of BMW OF NORTH AMERICA, INC.

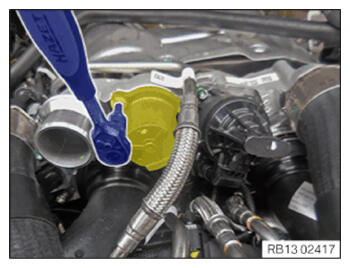

• Release the screw.
• Feed out and remove the blow-off valve of the cylinder bank 1.

Courtesy of BMW OF NORTH AMERICA, INC.
