Dismounting the wiper wash pump

Remove windshield washer pump

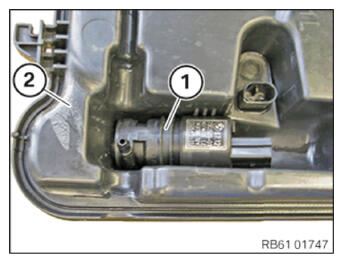

• Pull windshield washer pump (1) out of washer fluid reservoir (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

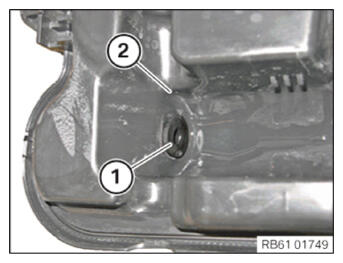

• Pull gasket (1) out of washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the window washer pump

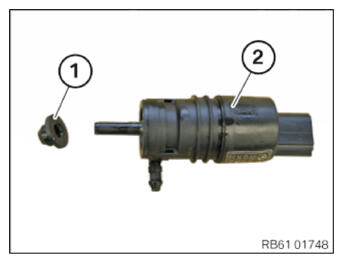

• Check the seal (1) and washer pump (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the seal (1) in the washer fluid reservoir (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the windshield washer pump (1) in the washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.
