Installing the convertible top module (CVM)

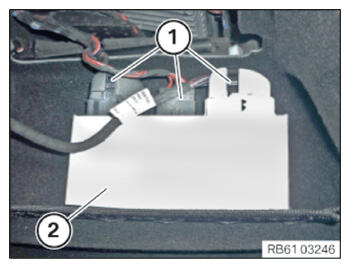

• Connect the connector (1) to the convertible top module (CVM) (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

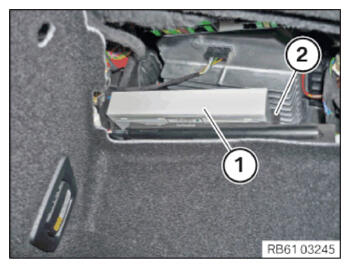

• Position the convertible top module (CVM) (1) and install it in the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
