Removing the control unit for the left front armrest heating

Preliminary work

• Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .

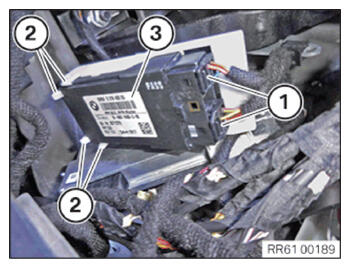

• Unlock and disconnect plug connections (1).
• Unlock the detents (2).
• Remove control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.
