Remove LIN power distribution box

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .

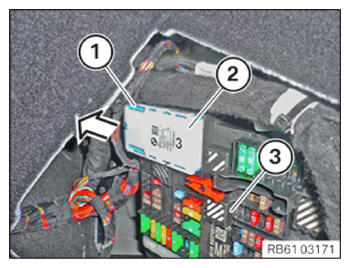

• Release locking mechanism (1) in direction of arrow.
• Remove LIN power distribution box (2) from power distribution (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

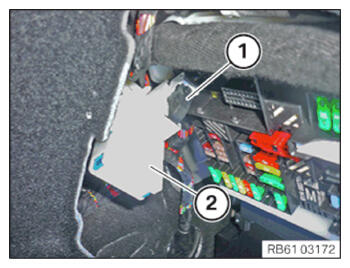

• Unlock and disconnect connector (1).
• Remove LIN power distribution box (2).

Courtesy of BMW OF NORTH AMERICA, INC.
