61 31 704 Replacing the operating facility in the center console (after vehicle diagnosis) (all 8' series coupe models 2019-, 8' series Gran Coupe sedan models 2020-)
>>
Installing the HDC button/trim
Installing the HDC button/trim

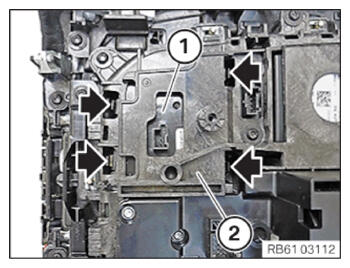

Position HDC button/trim
(1)
on control unit
(2)
.
The detents (arrows) must engage audibly.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
